eWallet
GraphQL and WSO2 API Manager Based eWallet Application.
With this application, users can sign in with their Google account and create an eWallet, which can be used to manage their expenses and incomes as well as to analyze their transaction history.
Technologies Used:
- GraphQL : For the backend API
- WSO2 API Manager : For API management
- Apollo Client/Server : For GraphQL client and server
- React : For the frontend
- Node.js : For the backend server
- MongoDB : For the database
- Google OAuth : For user authentication
Screenshots:
| Page | Screenshot |
| — | — |
| Home Page |
|
| Sign In |
|
| Create Wallet Page |
|
| Dashboard |
|
| Add Transaction |
|
Setup:
- Clone the repository
Clone the repository using the following command.
git clone https://github.com/Irash-Perera/eWallet-WSO2API-GraphQL.git
- Install the dependencies
Navigate to the project directory and install the dependencies in the client and server directories.
- Set up the environment variables
- Go to MongoDB Atlas and create a new cluster and get the connection string. Create a
.env file in the server directory and add the connection string as follows.
DATABASE_URI="mongodb+srv://xxxxxxxxxxxxx
- Go to Google Cloud Console and create a new project and get the OAuth client ID. Paste the client ID in the
/frontend/main.jsx file in the GoogleOAuthProvider component.
```
```
- Download the [WSO2 API Manager](https://wso2.com/api-manager/) and start the server. To start the server locally follow the instructions in the following [Quick Start Guide](https://apim.docs.wso2.com/en/latest/get-started/api-manager-quick-start-guide/).
- After starting the WSO2 API Manager, navigate to the `https://localhost:9443/publisher` and create a new API.

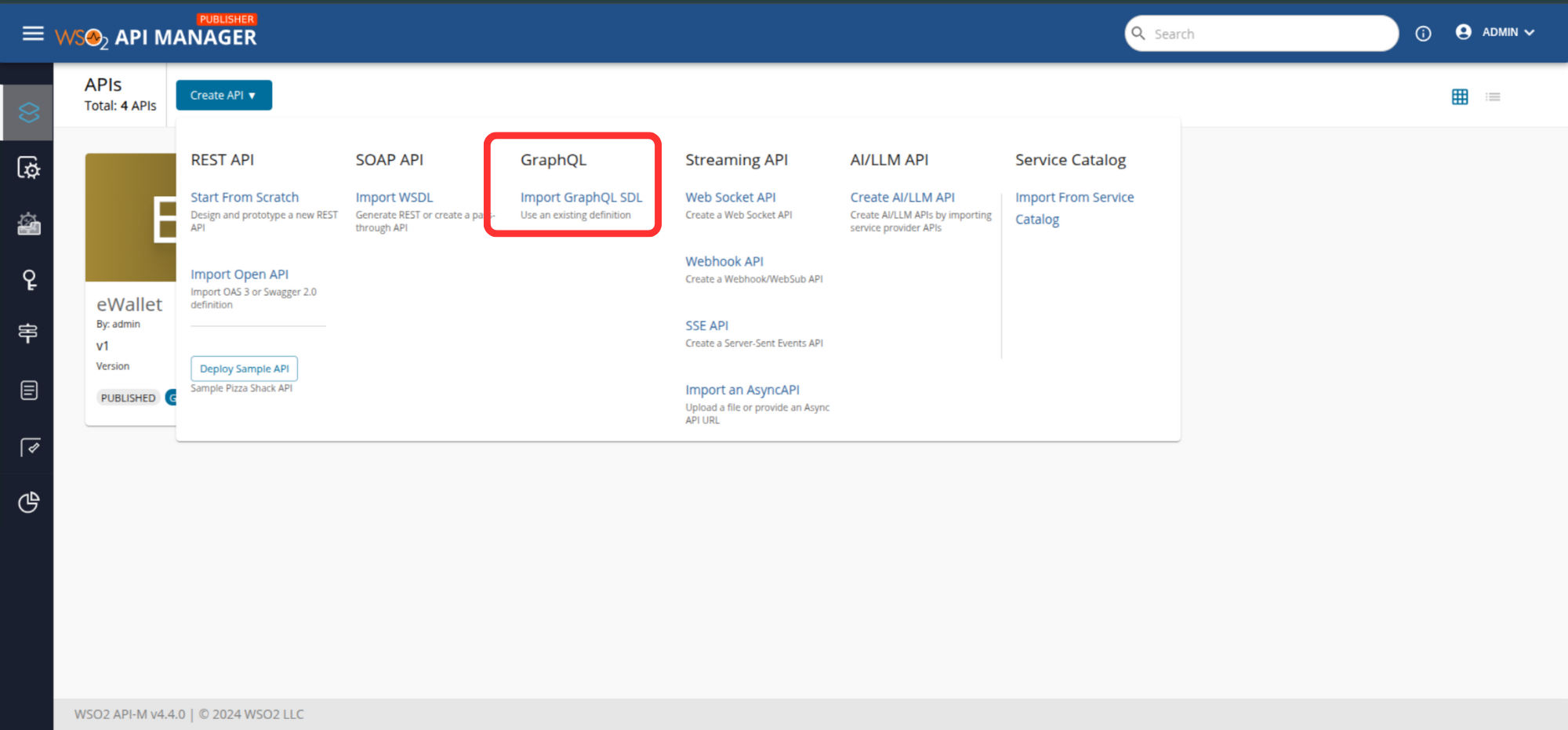

-Then select `Import GraphQL SDL` under `GraphQL` and import the `schema.graphql` file in the server directory.
- After importing the schema, enter the API details and create the API. From now on, follow the instructions in the [WSO2 API Manager Quick Start Guide](https://apim.docs.wso2.com/en/latest/get-started/api-manager-quick-start-guide/) to publish the API.
- After pubishing the API, copy the API endpoint and paste it in the `frontend/main.jsx` file to connect Apollo Client to the GraphQL API.
```
const client = new ApolloClient({
uri: 'https://localhost:8243/eWallet/v1',
cache: new InMemoryCache(),
headers: {
// This is a test token, replace it with the actual token
authorization: `Bearer eyJ4NXQiOiJOV1F3T1RSa01qQTVxxxxxxxxxxxxxxxx`,
},
});
```
- Replace the `authorization` header with the actual token generated by the WSO2 API Manager.
- Refer the [Apollo Client Documentation](https://www.apollographql.com/docs/react/get-started/) for more information on how to connect Apollo Client to a GraphQL API.
4. **Run the application**
- Navigate to the project directory and run the following command to start the server.
```
npm start
```
- Navigate to the client directory and run the following command to start the client.
```
npm run dev
```
5. **Access the application**
- Open the browser and navigate to `http://localhost:` to access the application. `` is the port number where the client is running.
